ModelPSX50E3033
UPS SystemIndustrial UPS

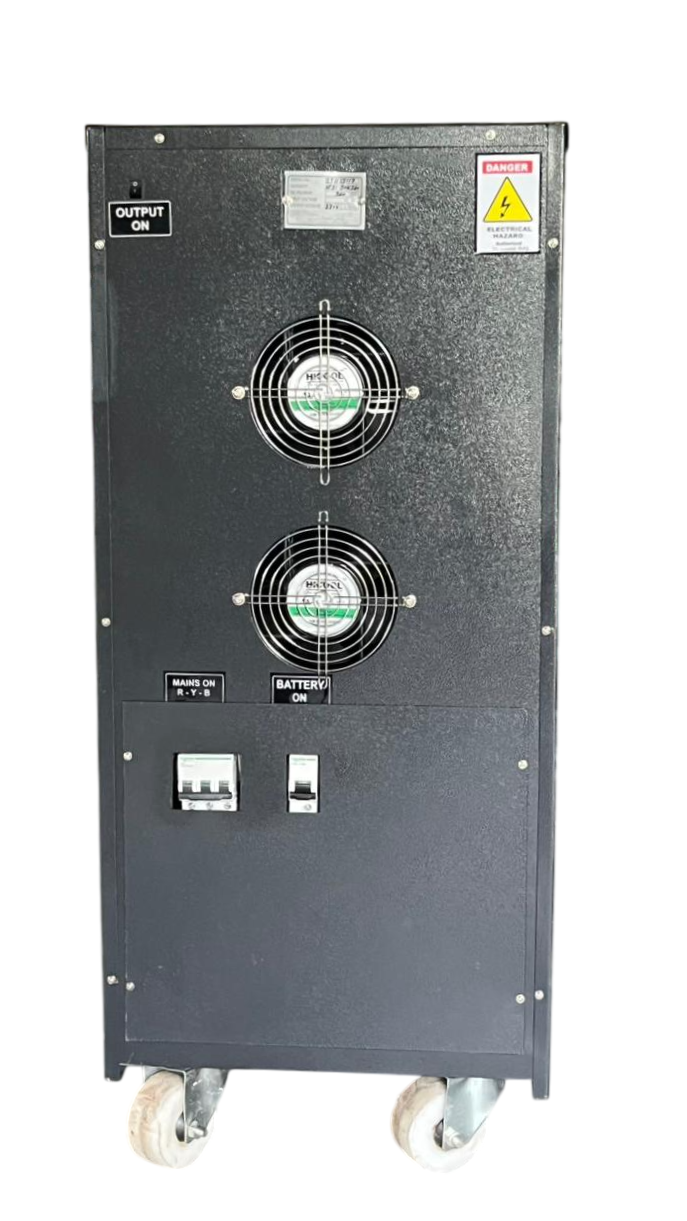

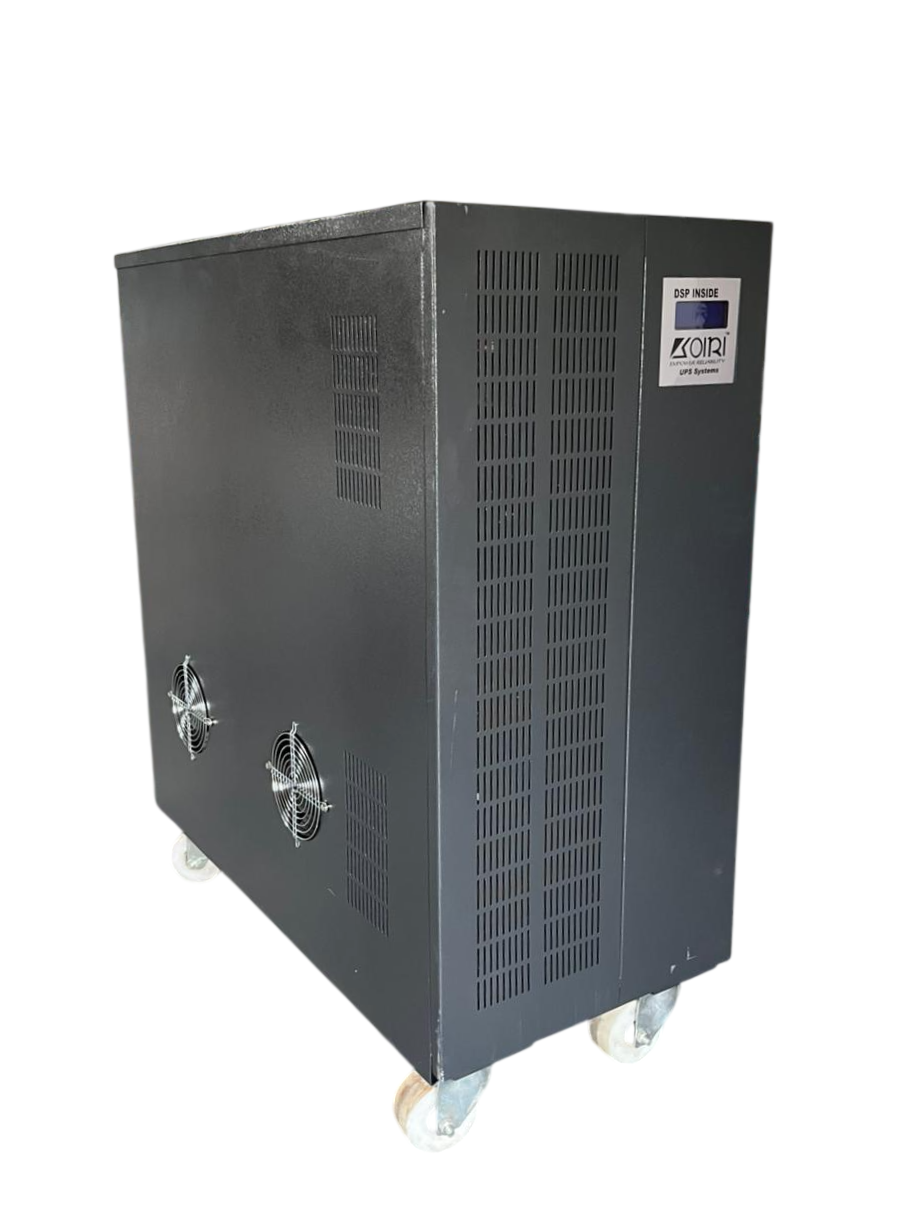

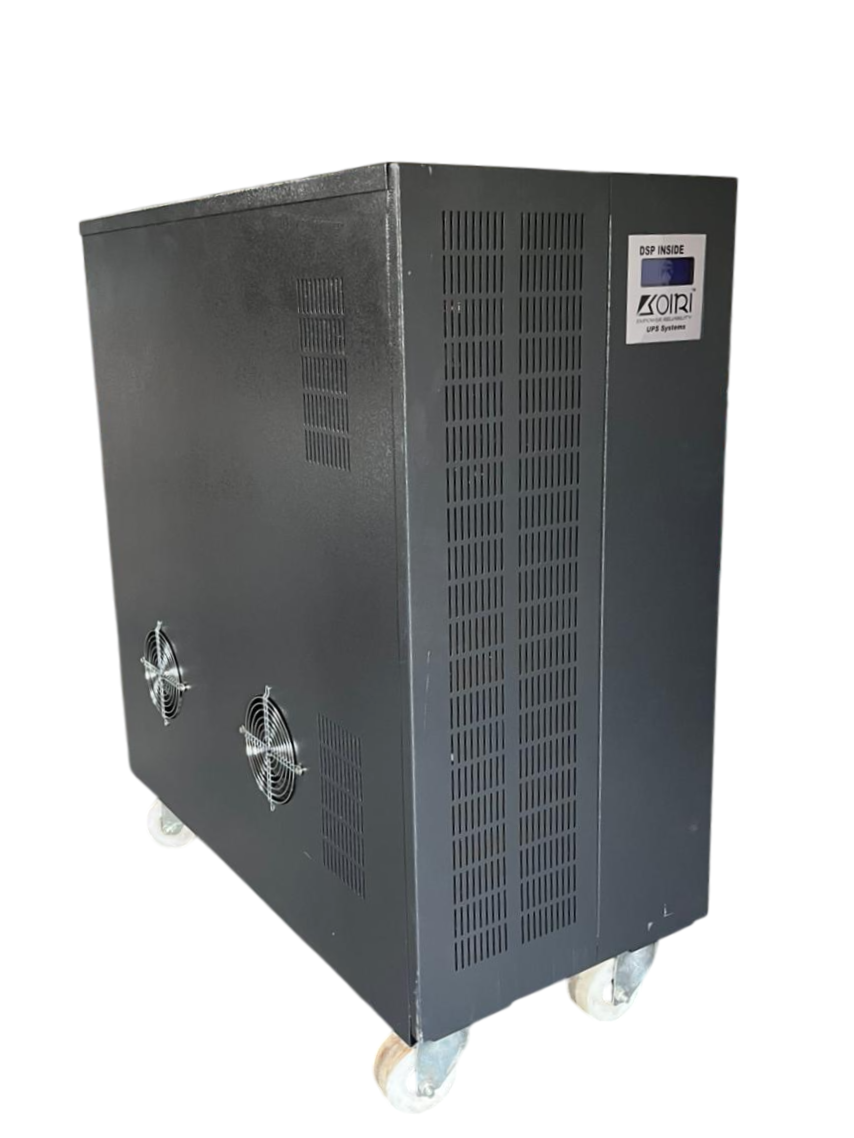

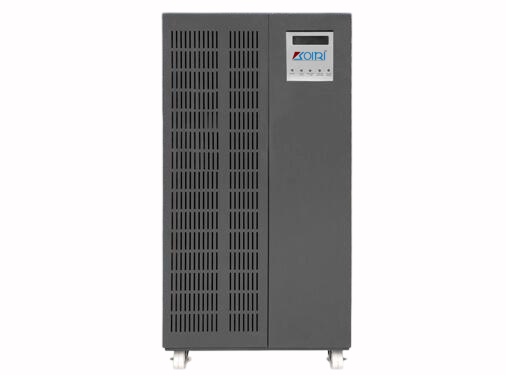

Koiri Power-Pro Low Frequency Heavy Duty On-Line UPS series offers reliable, industrial-grade power protection for a variety of applications. Designed with true online double-conversion technology and a low-frequency transformer design, these UPS units deliver stable, clean power while protecting equipment from voltage fluctuations, surges, and electrical noise.
Available in 1-Phase, 3-Phase, and 3:1 Phase models, the series caters to different power requirements, from small commercial setups to large industrial and IT environments.
| General Specifications | |
|---|---|
| Isolation Transformer | In-Built |
| Output Specification | |
|---|---|
| Output Capacity (KVA ) | 50 KVA |
| Output Capacity (KW ) | 40 KW |
| Output Power Factor | 0.8 Power Factor |
| Output Phase | 3 Phase |
| Output Voltage | 400 Volt |
| Efficiency at Full Load | > 92 % |
| Load Crest Factor | 3:1 |
| Output Waveform type | Sine Wave |
| Input Specification | |
|---|---|
| Input Voltage | 400 Volt |
| Other Input Voltage | 380 Or 415 Volt |
| Input Phase | 3 Phase |
| Input Voltage Range for Main Operations | 360 - 470 Volt |
| Input Protection | Fuse |
| Batteries & Runtime | |
|---|---|
| Battery DC Bus | 360 - 384 VDC |
| Maximum Charger Capacity | 30 Amp. |
| Battery Position Option | External |
| Battery Type Compatibility | SMF Battery |
| Approved Battery Capacity (AH) | 65 - 200 Amp. |
| Battery Circuit Breaker | Optional |
| Communication & Management | |
|---|---|
| Control panel | LCD Display |
| Interface Port(s) | RS-232, USB |
| Environmental | |
|---|---|
| Operating Temperature | 0 - 40 °C |
| Protection Class | IP20 |
| Compliances | |
|---|---|
| Compliance | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Item Image | Item Name | Model No | Amount |
|---|---|---|---|

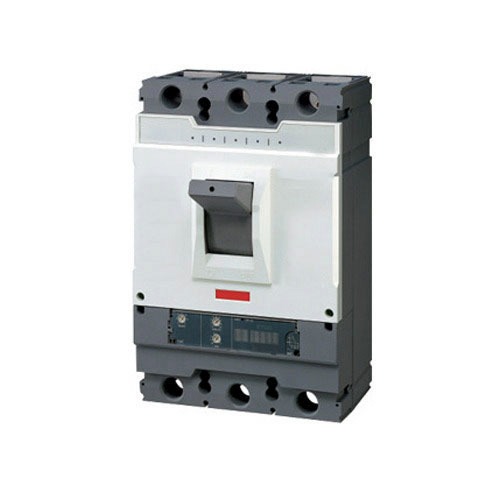

 | DC Breaker For 60 KVA Industrial On Line UPS | DCCB60KVA | 30090 |
| Item Image | Item Name | Model No | Amount |
|---|---|---|---|
 | 1 Yrs Extended Warranty Charges for 50 KVA 3:3 Phase On Line UPS | EXWQ-1YRS-50K33 | Ask Price |
 | 1 Year Comprehensive AMC Charges for 50 KVA 3:3 Phase On Line UPS | AMCQ-1YRS-50K33 | Ask Price |
